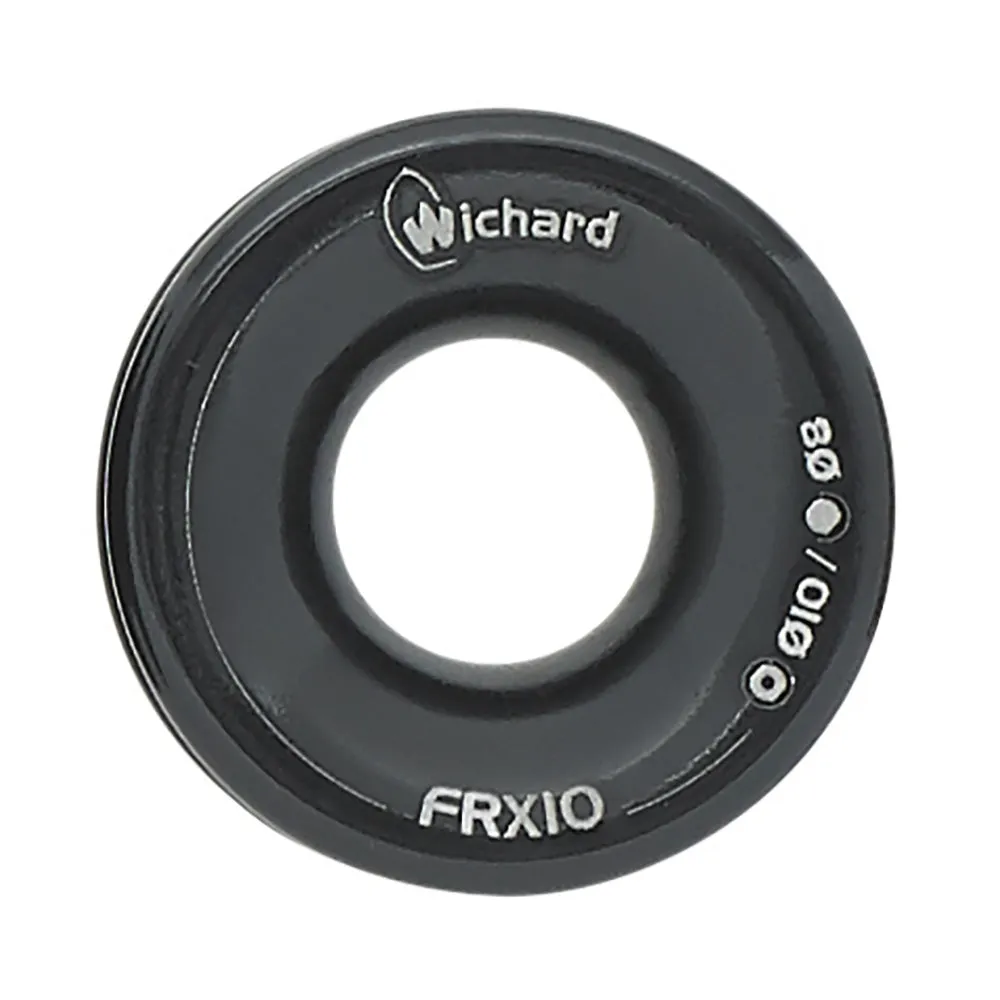

FRX10 Friction Ring - 10mm (25/64")

Features:

• Efficient and light
• FRX Wichard thimbles are efficient, light, and reliable
• Very strong and can be used for heavy loads and semi-static lines
• FRX thimbles are designed to make your lines run smoothly with minimum wear
• They are hard anodized (50 microns) for a longer lifespan

Applications:

• Mast-foot block, barber-hauler, inhauler, loop, thimble, lazy jack, running backstay, tackle, and more

Specifications:

• Materials: Anodized aluminium
• Working load: (lb) 1760 / (kg) 800
• Weight: (lb) 0.011/ (g) 5
• A: (inch) 5/16" / (mm) 8
• B: (inch) 25/64" / (mm) 10
• C: (inch) 15/32" / (mm) 12
• D diameter: (inch) 63/64" / (mm) 25

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
